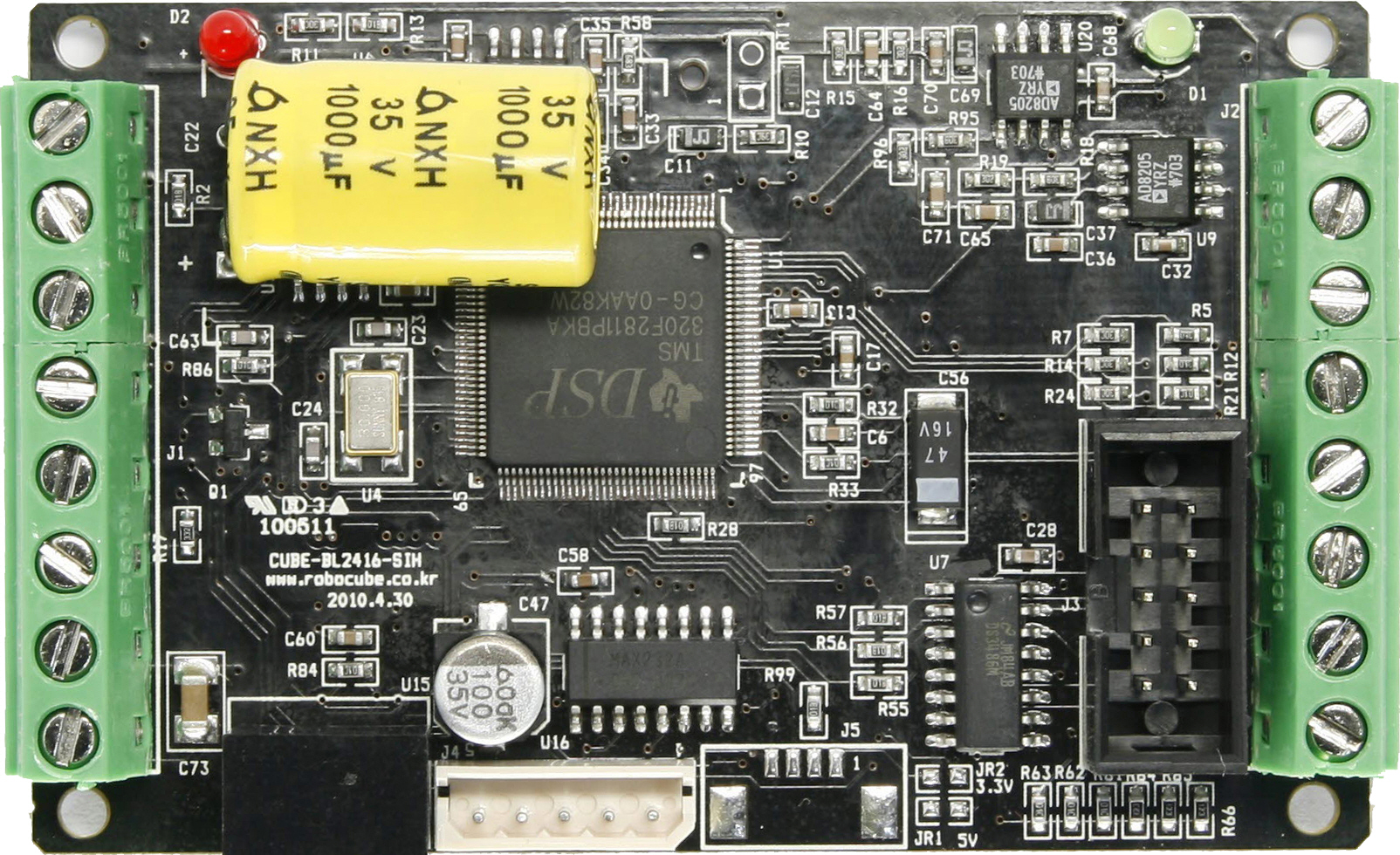

CUBE-DC2416-SIH

CUBE-DC3612-SIH

CUBE-DC4808-SIH

Number of Motors to Drive

1 ea

1 ea

1 ea

Nominal Supply Voltage

24V

36V

48V

Min / Max Supply Voltage

10V / 30V

12V / 45V

12V / 60V

Continuous Coil Current Amplitude⁽¹⁾ at Ta=25℃, 20KHz PWM

16A

12A

8A

Maximum Momentary Coil Current Amplitude

32A

24A

16A

PWM Frequency

20KHz ~ 100KHz

Control Output and Method

current / speed / position, unipolar / bipolar current control

Position Sensor

encoder

Back EMF Reducing Resistor

option

RS232C / RS485 / CAN

RS232(~115.2Kbps), RS485(~1.25Mbps), CAN(~1Mbps)
Among RS485 and CAN, only one can be selected by command.

External I/O

total 3 input or output (some analog and some digital)

Operating Ambient Temperature

0℃ ~ 50℃

Size (L×W×H, without case)

80mm×50mm×25mm

Weight (PCB and Bottom Heat Sink)

44g

Comment (1) Depends on Additional Heat Sink and Ambient Temperature and PWM frequency.
