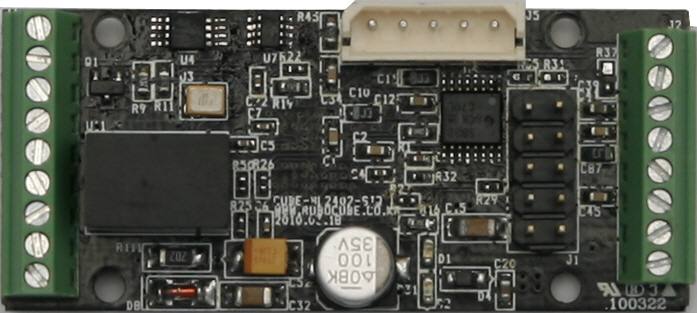

CUBE-BL2401-SIQ

Number of Motors to Drive

1 ea

Nominal Supply Voltage

24V

Min / Max Supply Voltage

10V / 30V

Continuous Coil Current Amplitude⁽¹⁾ at Ta=25℃, 20KHz PWM

1A

Maximum Momentary Coil Current Amplitude

2A

PWM Frequency

20KHz ~ 80KHz

Control Output and Method

current / speed / position, SVPWM / sine PWM / block commutation current control

Position Sensor and Resolution

encoder & Hall IC / Hall IC only / analog Hall IC only

Back EMF Reducing Resistor

option

RS232C / RS485 / CAN

RS232(~115.2Kbps), RS485(~1.25Mbps), CAN(~1Mbps)
Among RS485 and CAN, only one can be selected by command.

External I/O

total 3 input or output (some analog and some digital)

Operating Ambient Temperature

0℃ ~ 50℃

Size (L×W×H, without case)

57mm×25mm×15mm

Weight (PCB and Bottom Heat Sink)

40g

Comment (1) Depends on Additional Heat Sink and Ambient Temperature and PWM frequency.
