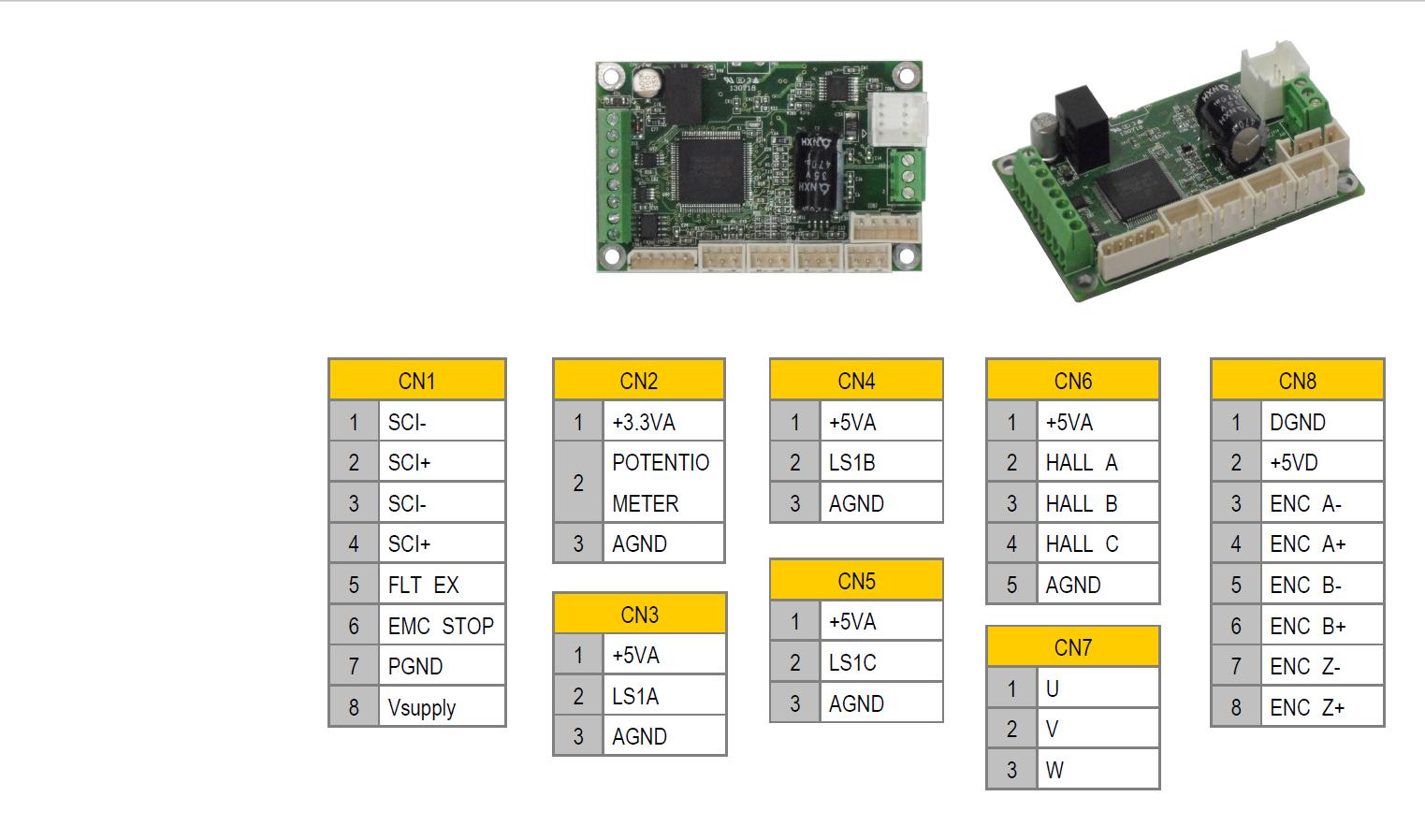

CUBE-DB2404-SIK

CUBE-DB3603-SIK

CUBE-DB4802-SIK

Number of Motors to Drive

1 ea

1 ea

1 ea

Nominal Supply Voltage

24V

36V

48V

Min / Max Supply Voltage

10V / 30V

12V / 45V

12V / 60V

Continuous Coil Current Amplitude⁽¹⁾ at Ta=25℃, 20KHz PWM

4A

3A

2A

Maximum Momentary Coil Current Amplitude

8A

6A

4A

PWM Frequency

20KHz ~ 40KHz

Control Output and Method

current / speed / position, SVPWM / sine PWM /

block communication current control

Position Sensor

Encoder & Hall IC / Hall IC only / analog Hall IC only / resolver /

SSI-type absolute encoder

Back EMF Reducing Resistor

25W power resister

RS232C / RS485 / CAN

RS232(~115.2Kbps), RS485(~2.5Mbps), CAN(~1Mbps)
Among RS485 and CAN, only one can be selected by command.

External I/O

total 6 input or output (some analog and some digital)

Operating Ambient Temperature

0℃ ~ 50℃

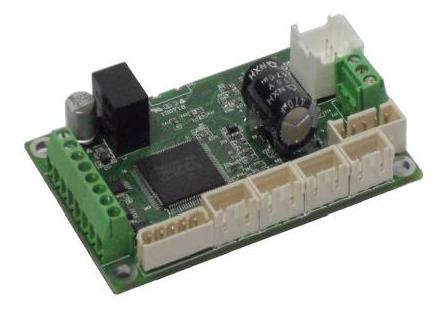

Size (L×W×H, without case)

70mm×45mm×15mm

Weight (PCB and Bottom Heat Sink)

29g

Comment (1) Depends on Additional Heat Sink and Ambient Temperature and PWM frequency.
