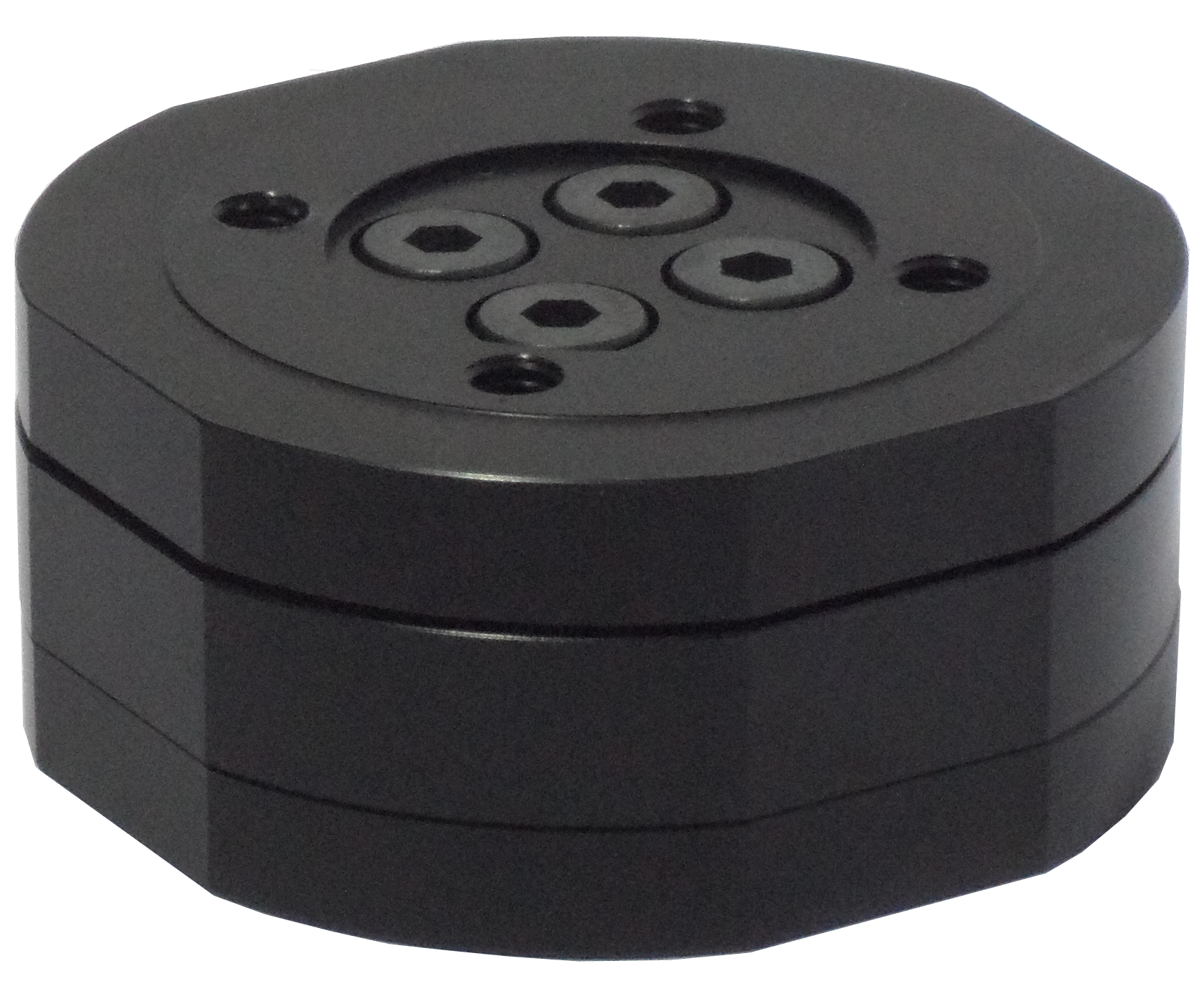

CUBE-FT3-4420-IFx

CUBE-FT3-6729-IFx

CUBE-FT3-7834-IFx

CUBE-FT3-9040-IFx

Axis

3

3

3

3

Force Measuring Limit :
Fz (AL / Steel)

15Kgf / 20Kgf

100Kgf / 125Kgf

140Kgf / 200Kgf

140Kgf / 175

Torque Measuring Limit :
Tx, Ty (AL / Steel)

1Kgf-m / 1Kgf-m

4Kgf-m / 6Kgf-m

7Kgf-m / 10Kgf-m

10Kgf-m/ 12.5Kgf-m

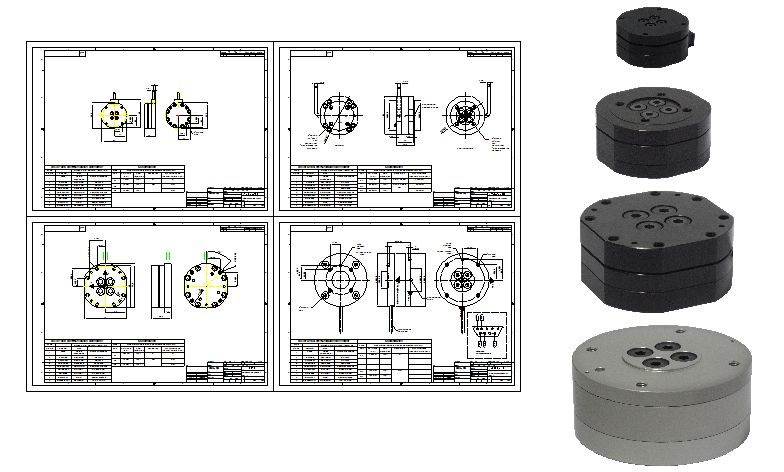

Diameter

44mm

67mm

78mm

90mm

Height

20mm

29mm

34mm

40mm

Weight (AL / Steel)

110g / 330g

200g / 600g

280g / 750g

380g / 930g

Material¹⁾

AL-alloy / steel

Sensor Type

120Ω foil strain gauge

Amplifier Location

built-in

Amplifier Operating Voltage and Current

10V ~ 30V, <200mA

Measurement Resolution

0.01% of full scale

RS232C / RS485 / CAN

RS232(~115.2Kbps), RS485(~1.25Mbps), CAN(~1Mbps)
Between RS485 and CAN, only one can be selected by command.

Operating Ambient Temperature

0℃ ~ 50℃

Comment (1) Part numbers of AL-alloy and steel version are CUBE-FT3-xxxx-IFA and CUBE-FT3-xxxx-IFS each other.
