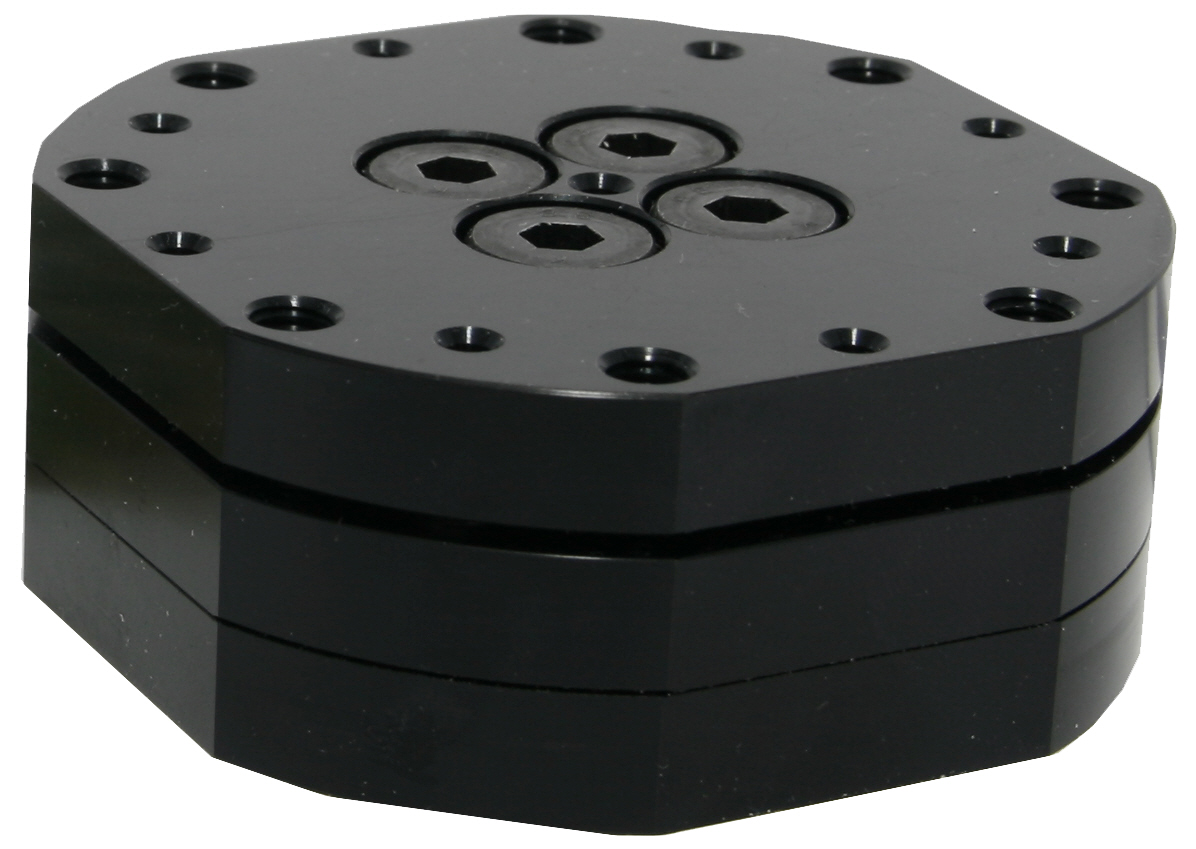

CUBE-FT3-4420-EFx

CUBE-FT3-5825-EFx

CUBE-FT3-6827-EFx

CUBE-FT3-7830-EFx

Axis

3

3

3

3

Force Measuring Limit : Fz (AL / Steel)

15Kgf / 20Kgf

50Kgf / 70Kgf

100Kgf / 140Kgf

140Kgf / 200Kgf

Torque Measuring Limit : Tx, Ty

(AL / Steel)

1Kgf-m / 1Kgf-m

2.5Kgf-m / 3.5Kgf-m

5Kgf-m / 7Kgf-m

7Kgf-m / 10Kgf-m

Diameter

44mm

58mm

68mm

78mm

Height

20mm

25mm

27mm

30mm

Weight (AL / Steel)

60g / 270g

110g / 430g

150g / 550g

230g / 700g

Sensor Type

120Ω foil strain gauge

Amplifier Location

seperate from sensor body

Amplifier Operating Voltage and Current

10V ~ 30V, <200mA

Measurement Resolution

0.01% of full scale

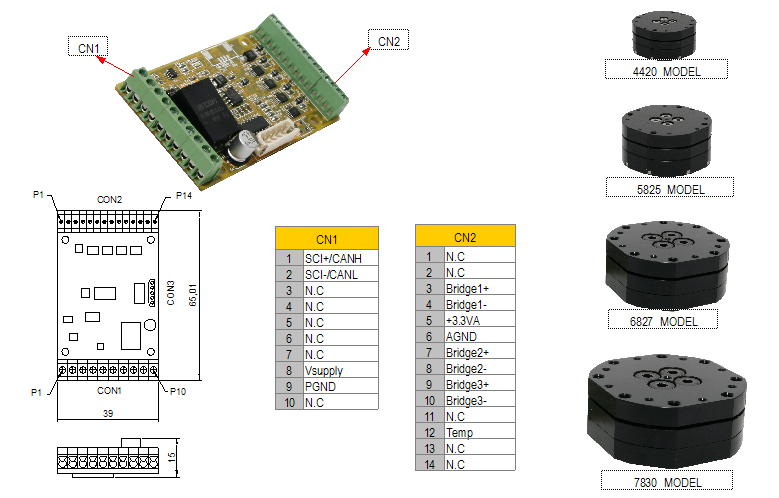

Amplifier PCB Dimension

63mm×39mm×15mm

RS232C / RS485 / CAN

RS232(~115.2Kbps), RS485(~1.25Mbps), CAN(~1Mbps)
Between RS485 and CAN, only one can be selected by command.

Operating Ambient Temperature

0℃ ~ 50℃

Comment (1) Part numbers of AL-alloy and steel version are CUBE-FT3-xxxx-EFA and CUBE-FT3-xxxx-EFS each other.
