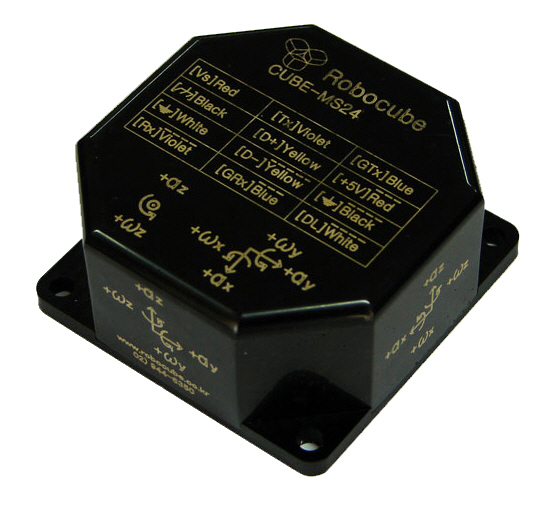

CUBE-MS24-AA

CUBE-MS48-AA

Supply Voltage

24V

48V

Min / Max Supply Voltage

10V / 30V

12V / 60V

Current Consumption

<100mA

Angular rate

Range : ±80, ±160 and ±320 deg/sec user-selectable
Resolution : 0.01832 deg/sec/bit at ±80 deg/sec range

Acceleration

Range : ±1.7g
Resolution : 0.4625 mg/bit

Rotation Agle

Range : ±300˚
Resolution : 0.03663 deg/bit

Inclination Angle

Range : ±90˚
Resolution : 0.1 deg/bit

RS232C / RS485 / Can

RS232(~115.2Kbps), RS485(~1.25Mbps), CAN(~1Mbps)
Among RS485 and CAN, only one can be selected by command.

Operating Ambient Temperature

0℃ ~ 50℃

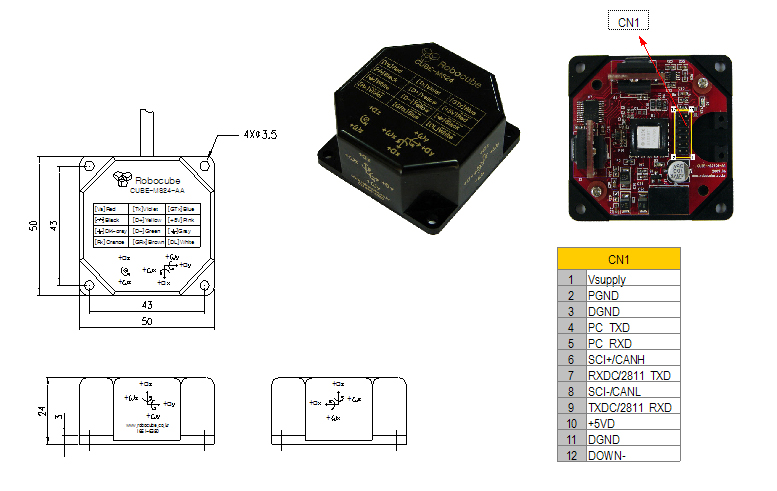

Size (L×W×H, with case)

50mm×50mm×24mm

Weight (with case)

35g
