PMMxxx

가입자 정보
■ 상품코드	Robot modules
■ 판매가	0원
■ 제조사/원산지	로보큐브테크 / 한국
■ 수량
■ 선택

총 상품금액 0원

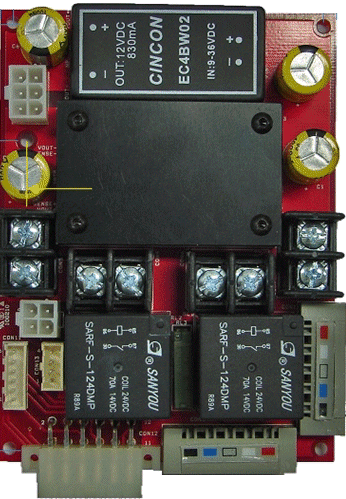

제품특징:	- Power Management Module for Mobile Robot - Charger, External Power, Battery 공급 전압 : 24 or 48 V - Main Power Relay Contact Current : 50A - Battery Charging Relay Contact Current : 5A - Emergency Shutdown Port 사용 가능 - PC power at Emergency Shutdown 작동 - Charge, External Power, Battery Power Selection (by rotary switch or toggle switch without interrupt)

	CUBE-PMM024	CUBE-PMM048
Charger, External Power, Battery	24V	48V
Main Power Relay Contact Current	50A	50A
Battery Charging Relay Contact Current	5A	5A
Output Voltage and Maximum Current	24V / upto 50A for Motor Driving 12V / 2.5A for PC and internal use 5V / 12A for PC	48V / upto 50A for Motor Driving 12V / 2.5A for PC and internal use 5V / 12A for PC
Connectors	External power and Chager input, Battery connection, Power source selection Motor driving power output, PC driving power output
Charge, External Power, Battery Power Selection	by rotary switch or toggle switch without interrupt	by rotary switch or toggle switch without interrupt
Emergency Shutdown Port	available	available
PC power at Emergency Shutdown	ON	ON
Dimension	W120 x D90 x H30 mm	W120 x D90 x H30 mm

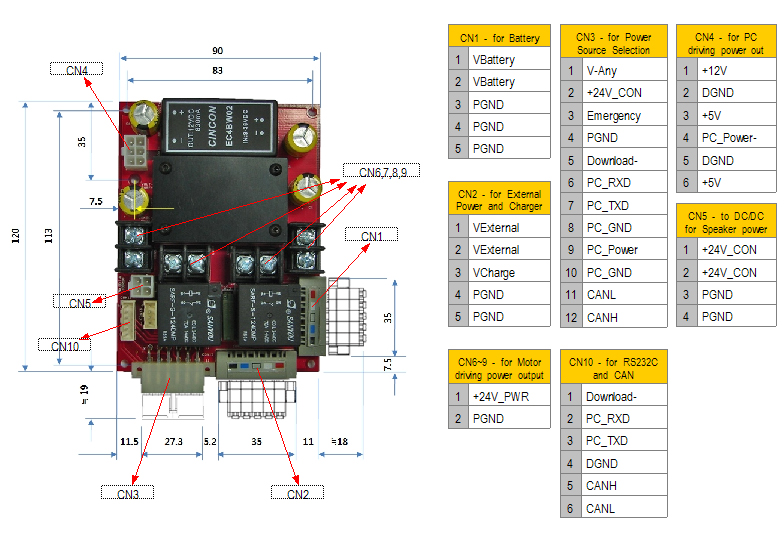

Dimensional Drawing & Picture & Connector
